K7 Strobe bar

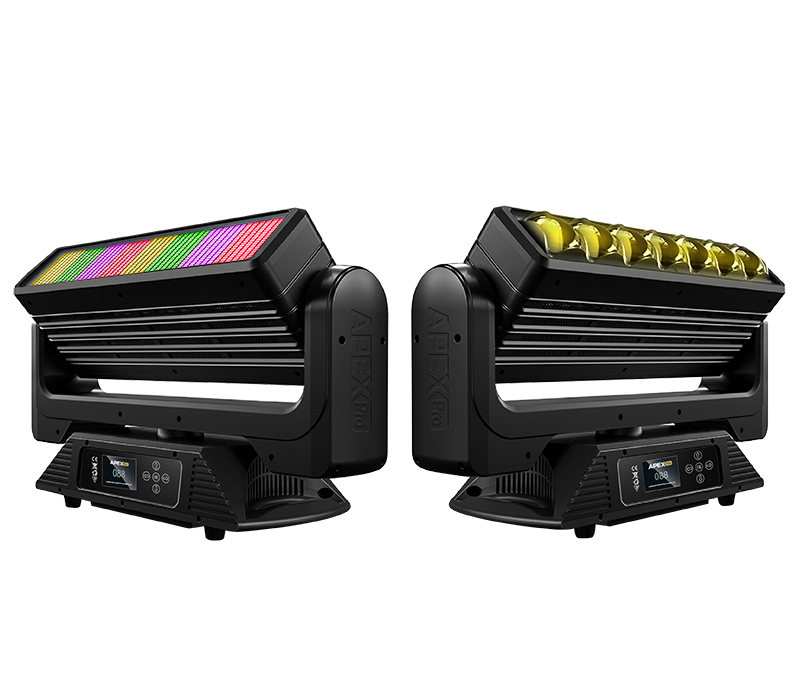

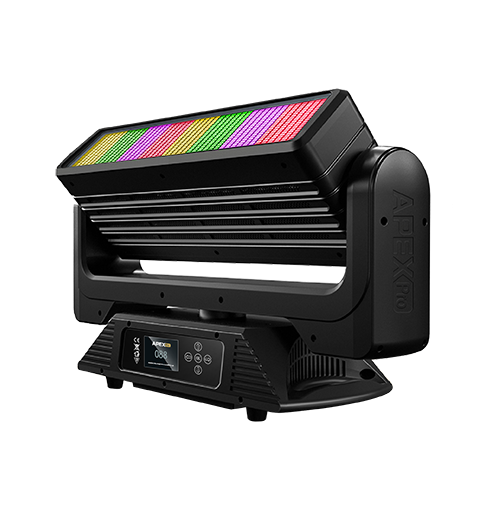

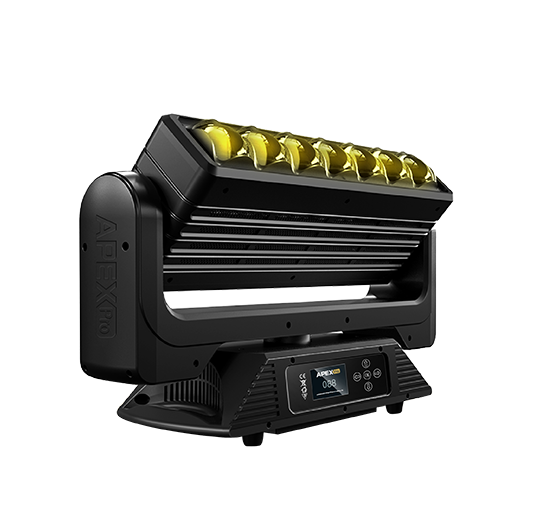

Double-faced LED matrix and Blade Light/K7 Strobe bar

POWER SUPPLY

AC100V-240V, 50 / 60Hz

Power Consumption: 320W (Max)


LIGHT SOURCE

LED: 7pcs 40w RGBW+560pcs 0.3W RGB LED source

Rated Life: 50,000 hours


OPTICS

Beam aperture: 3° to 60°

Srobe Angle: 120°

25 squared 65 mm frontal lens


COLOURS

Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering Index

Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues

Dynamic colour macro effect with variable speed


DIMMER/STROBE

Electronic dimmer, allowing perfect light adjustment from 0 to 100%

White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second


MOVEMENT

Moving-head operated via either 8- or 16-bit resolution

Moving-head range: infinite pan and tilt rotation

EFFECTS

2D & 3D graphical effects capabilities

Effects can be coupled with beam, wash, strobe or matrix applications


FEATURES

Operation modes:DMX512 /RDM

Control channel modes: 22/26 channels


DISPLAY

Advanced and convenient full-color LCD

Can be changed 180°reverse to fit for different installation positions

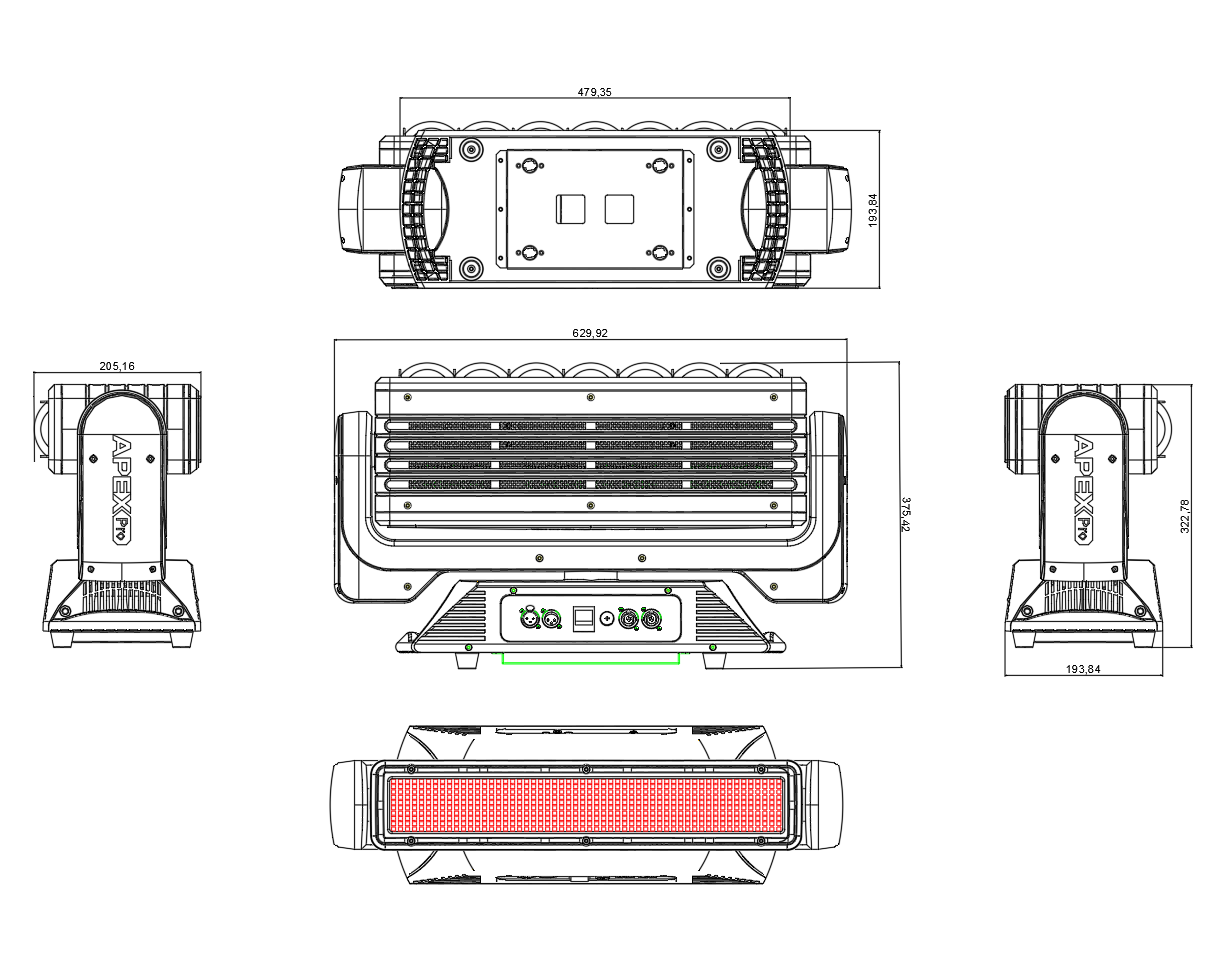

SIZE AND WEIGHT

Size: 630*108*375*mm

Net Weight: 17.9kg
